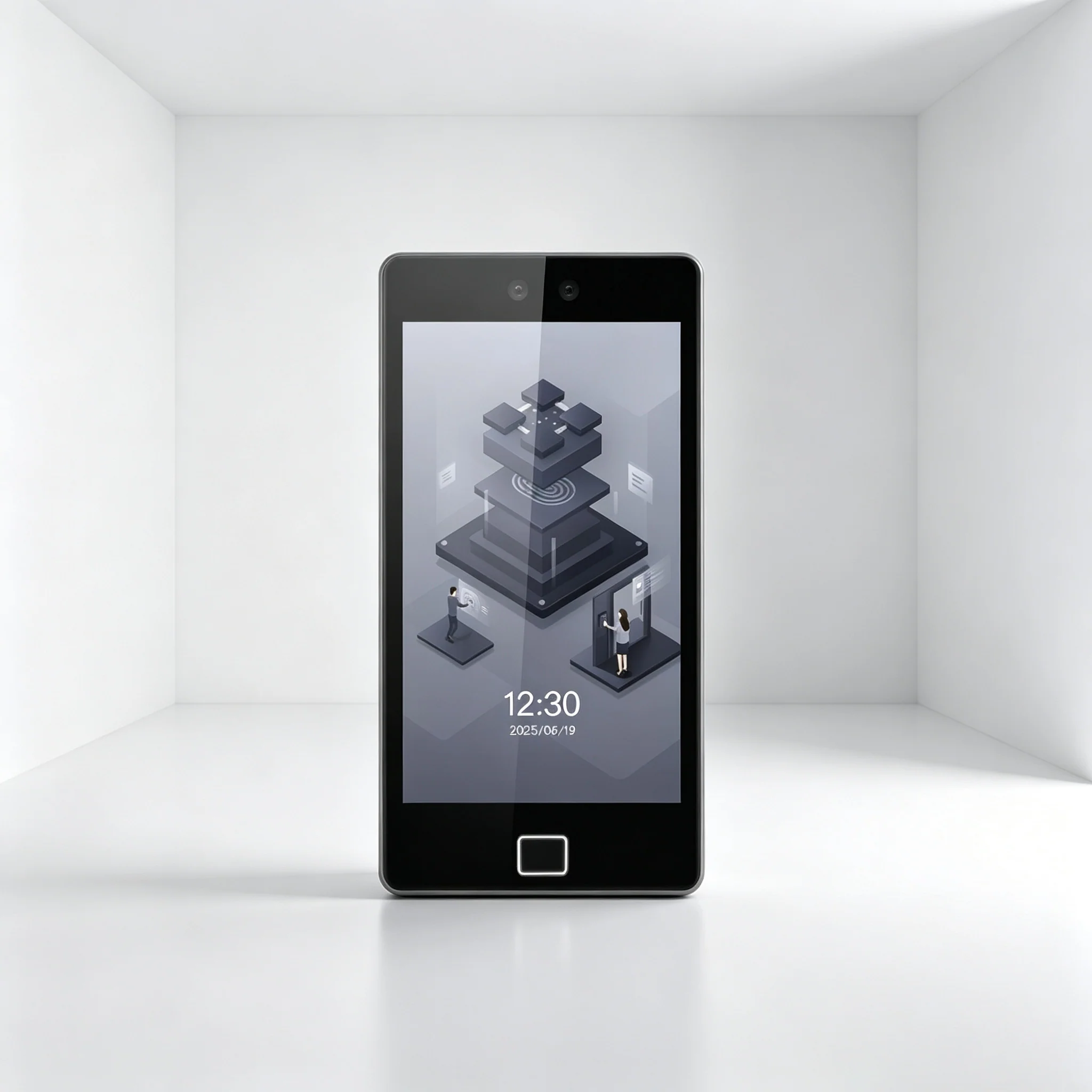

HIK DS-K1T680DF-E1 Ultra Series Wall-Mounted Face Access Terminal
HIK DS-K1T680DF-E1 Ultra Series Wall-Mounted Face Access Terminal
DS-K1T680DF-E1 is a Ultra Series Wall-Mounted Face Access Terminal for professional security projects, retail installations, and B2B deployment.
Key Highlights
- 8-inch touch screen with bezel-less design
- Presents card on the screen to authenticate
- Face recognition distance: 0.3 m to 3 m, duration ＜ 0.2 s/User, accuracy rate ≥ 99%
- 100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), 10,000 fingerprint capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, and PoE
- Two-way audio with indoor station and main station
- Configuration via the web client and mobile client
-
Customizes attendance status name
Specification
Display
| Screen size | 8 inch |
| Operation method | Capacitive touch screen |
| Type | LCD |
Video
| Lens | 2 |
| Resolution | 2 MP |
| FOV | HFOV = 88°; VFOV = 44°; DFOV = 108° |
Network
| Wired network | Support |
| RF Frequency | 13.56 MHz |
Interface
| Network interface | 1 RJ-45, 10/100/1000 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 2 |
| Alarm output | 1 |
| TAMPER | 1 |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
| Wiegand | 1 Wiegand(Hik 26bit,Hik 34bit) |
| USB | 1 |
Authentication
| Card type | DESfire card;Felica card |
General
| Power supply | 12 to 24 VDC, 3 A, Standard PoE |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 0 to 90% (No condensing) |
| Protective level | IP65 |
| Dimensions | 127.3 mm × 232.1 mm × 23.5 mm (5.0'' × 9.1'' × 0.9'' ) |
Function
| Hik-Connect | Support |
| Language | English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian |
| QR code recognition | Support. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm. |
| Face anti-spoofing | Support |
$430.50
Original: $1,230.00
-65%HIK DS-K1T680DF-E1 Ultra Series Wall-Mounted Face Access Terminal—
$1,230.00
$430.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HIK DS-K1T680DF-E1 Ultra Series Wall-Mounted Face Access Terminal
DS-K1T680DF-E1 is a Ultra Series Wall-Mounted Face Access Terminal for professional security projects, retail installations, and B2B deployment.
Key Highlights
- 8-inch touch screen with bezel-less design
- Presents card on the screen to authenticate
- Face recognition distance: 0.3 m to 3 m, duration ＜ 0.2 s/User, accuracy rate ≥ 99%
- 100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), 10,000 fingerprint capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, and PoE
- Two-way audio with indoor station and main station
- Configuration via the web client and mobile client
-
Customizes attendance status name
Specification
Display
| Screen size | 8 inch |
| Operation method | Capacitive touch screen |
| Type | LCD |
Video
| Lens | 2 |
| Resolution | 2 MP |
| FOV | HFOV = 88°; VFOV = 44°; DFOV = 108° |
Network
| Wired network | Support |
| RF Frequency | 13.56 MHz |
Interface
| Network interface | 1 RJ-45, 10/100/1000 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 2 |
| Alarm output | 1 |
| TAMPER | 1 |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
| Wiegand | 1 Wiegand(Hik 26bit,Hik 34bit) |
| USB | 1 |
Authentication
| Card type | DESfire card;Felica card |
General
| Power supply | 12 to 24 VDC, 3 A, Standard PoE |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 0 to 90% (No condensing) |
| Protective level | IP65 |
| Dimensions | 127.3 mm × 232.1 mm × 23.5 mm (5.0'' × 9.1'' × 0.9'' ) |
Function
| Hik-Connect | Support |
| Language | English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian |
| QR code recognition | Support. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm. |
| Face anti-spoofing | Support |
