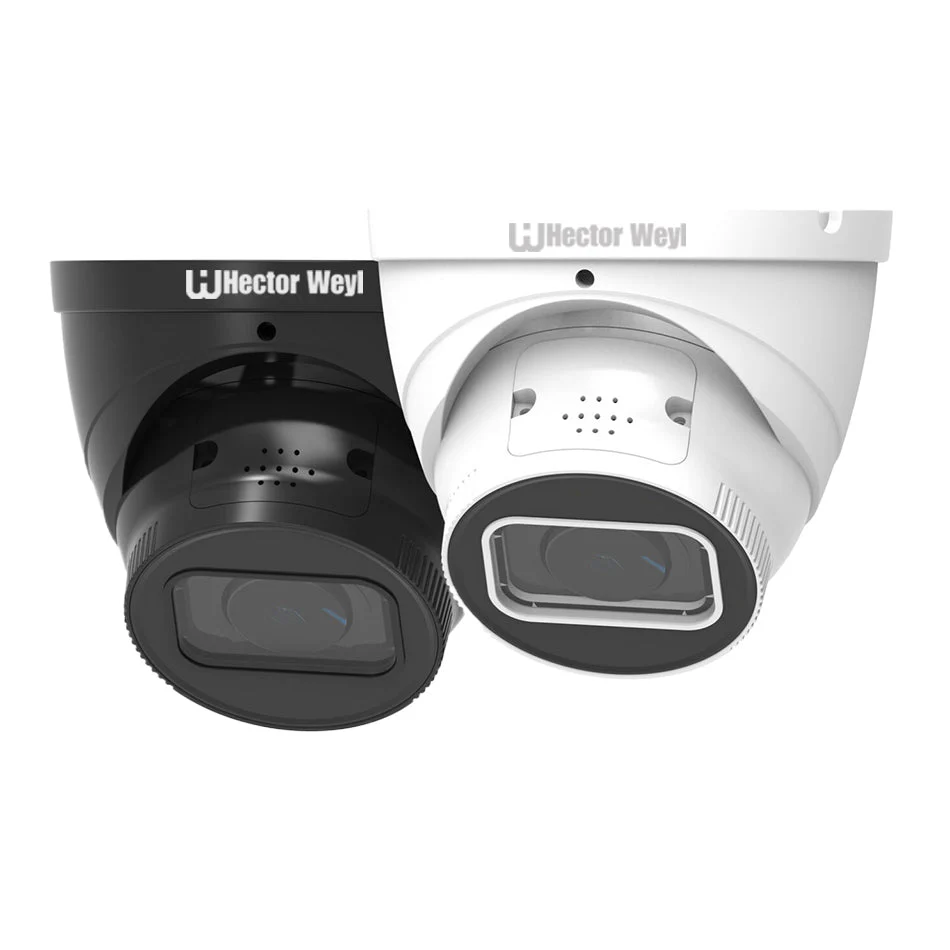

HW-IPC-G2829M-IL-ZAS 8MP Advanced Dual Light Vari-Focal Eyeball IntelliSight NightColor AI Network Camera
HW-IPC-G2829M-IL-ZAS 8MP Advanced Dual Light Vari-Focal Eyeball IntelliSight NightColor AI Network Camera Overview
With advanced deep learning algorithm, Hector weyl Advanced Dual Hybrid Light Active Deterrence NightColor IntelliSight 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With StarVu technology, this series camera provides a better image effect in the condition of low illuminance.
? ? ?8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.;
? ? ?Outputs max. 8 MP 3840 (H) ¡Á2160 (V)@ (1~25/30fps) ;?
? ? ?H.265 codec, high compression rate, ultra-low bit rate.
? ? ?Built-in IR LED, and the max. illumination distance is 50 m.
? ? ?H.264+ /H.265+, flexible coding, applicable to various bandwidth and storage environments;
? ? ?WDR, 3D NR, HLC, BLC, digital watermarking, applicable
? ? ?to various monitoring scenes;
? ? ?2.8-12mm Motorized vari-focal Lens;
? ? ?ntrusion, Tripwire( Support the Classification of Vehicle, Human and Non-Motor );
? ? ?Supports max. 256 G Micro SD card; built in Mic
? ? ?AMD;
? ? ?12 VDC/PoE power supply;?
? ? ?IP67 protection.
|
Camera |
|
|
Image Sensor |
1/1.8¡± CMOS |
|
Max. Resolution |
8MP, 3840 (H) ¡Á 2160 (V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s¨C1/100,000 s |
|
Min. Illumination |
0.0006 lux@F1 .6( F1.0 optional) (Color, 30 IRE),0.0004 lux@F1.6( F1.0 optional) ( B/W, 30? IRE),0 lux (Illuminator on) |
|
S/N Ratio |
> 56 dB |
|
Illumination Distance |
Warm light distance 50 m, IR distance 50m |
|
Illuminator Control |
Auto; Manual |
|
Lens |
|
|
Lens Type |
Motorized Vari-Focal |
|
Focal Length |
2.8-12mm |
|
Max. Aperture |
F1.2 |
|
? Field of View |
Horizontal: 99¡ã¨C28¡ã Vertical: 71¡ã¨C21¡ã Diagonal: 134¡ã¨C35¡ã |
|
Iris Type |
Auto |
|
Intelligence |
|
|
Smart Motion Detection |
Yes |
|
Perimeter Protection |
Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor) |
|
Face Detection |
NA |
|
Object Detection |
NA |
|
People Counting |
NA |
|
Heat Map |
NA |
|
AI Search |
Work together with NVR |
|
Video |
|
|
Compression |
H.264H; H.264M; H.264B; H.265 |
|
Smart Compression |
H.264H+; H.264M+; H.264B+; H.265+ |
|
? ? Video Frame Rate |
Main Stream: 8MP 3840 (H) ¡Á 2160 (V) (1 fps¨C25/30 fps) |
|
Sub Stream: D1 (1 fps¨C25/30 fps) |
|
|
Third Stream: 720P (1 fps¨C25/30 fps) |
|
|
Stream Capability |
3 Streams |
|
Bit Rate Control |
CBR/VBR |
|
? Video Bit Rate |
H.264: 3 Kbps¨C20480 Kbps |
|
H.265: 3 Kbps¨C20480 Kbps |
|
|
Day/Night |
Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
120 dB |
|
White Balance |
Yes |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 Areas, rectangular) |
|
Image Rotation |
180¡ã |
|
Mirror |
Yes |
|
Privacy Masking |
4 Areas |
|
Audio |
|
|
Built-in Mic |
Yes |
|
Built-in Speaker |
Optional |
|
Alarm |
|
|
Arming/Disarming |
NA |
|
Sound Alarm |
NA |
|
Light Alarm |
Yes |
|
Alarm Event |
Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
|
Network |
|
|
Network |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP |
|
Interoperability |
ONVIF; CGI; P2P(Optional) |
|
User/Host |
20 (Total bandwidth: 80 M) |
|
Storage |
FTP; Micro SD card (support max. 256 G/FAT32) |
|
Browser |
IE: IE8 and later; Chrome; Firefox |
|
Management Software |
PC Software(SVMS) |
|
Mobile Client |
IOS; Android |
|
Port |
|
|
Audio Input |
NA |
|
Audio Output |
NA |
|
Alarm Input |
NA |
|
Alarm Output |
NA |
|
Power |
|
|
Power Supply |
12V DC (¡À30%)/PoE (802.3af) |
|
Power Consumption |
Basic: 2.8 W; Max. 6.5W |
|
Environment |
|
|
Operating Conditions |
¨C30¡ãC to +60¡ãC (¨C22¡ãF to +140¡ãF)/Less than 95% RH |
|
Storage Conditions |
¨C40¡ãC to +60¡ãC (¨C40¡ãF to +140¡ãF) |
|
Protection Grade |
IP67 |
|
Structure |
|
|
Casing |
Metal |
|
Dimensions |
110 mm ¡Á ¦µ122 mm |
|
Net Weight |
670g |
Original: $266.00
-65%$266.00
$93.10Product Information
