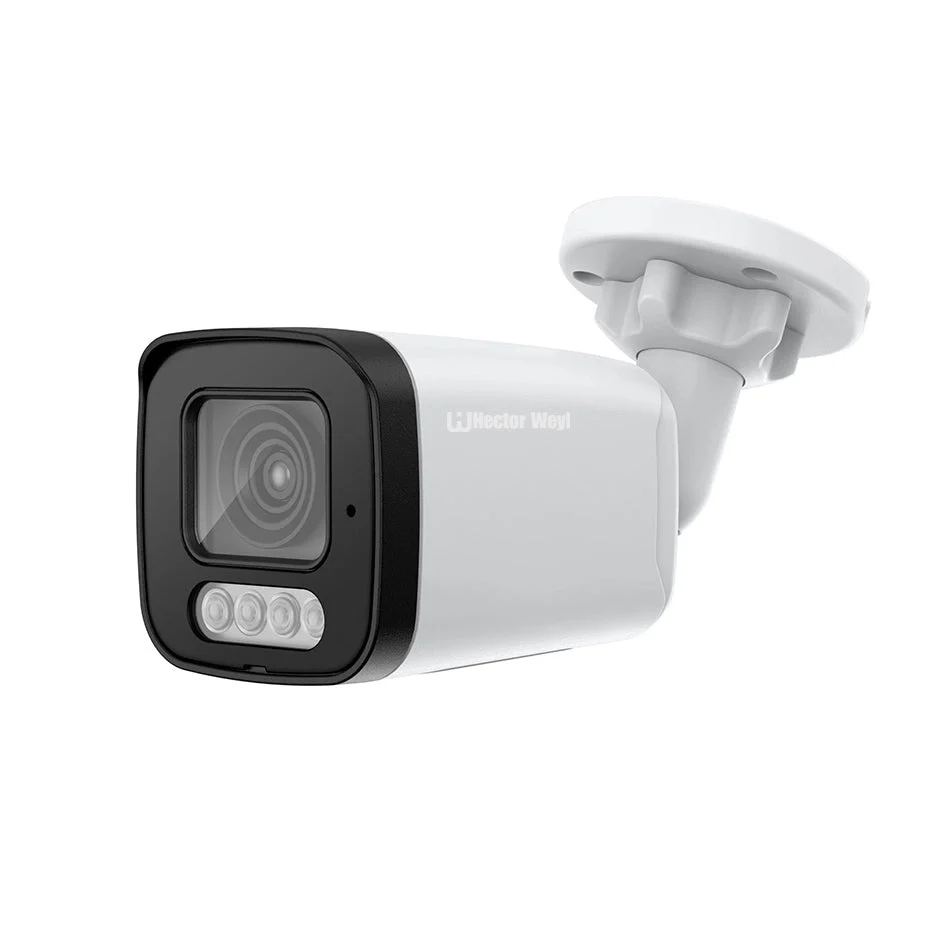

HW-IPC F1449S-IL-G2 4 MP Advanced Dual Light Fixed Focal Bullet Network Camera
HW-IPC F1449S-IL-G2 4 MP Advanced Dual Light Fixed Focal Bullet Network Camera Overview
With advanced dual hybrid light technology, simple installation, and intelligent operation, Hector Weyl Advanced Dual Hybrid Light Smart Entry 2 Series camera suits small-to-medium scenes like homes, shops, and enterprises, offering high-quality full-color imaging day and night.
? ? ?1/2.8"Progressive Scan CMOS;
? ? ?4MP(1~25/30fps);
? ? ?H.265 codec, high compression rate, ultra-low bit rate.
? ? ?Built-in efficient IR illuminator and White light, and the max illumination distance is 40 m.
? ? ?2.8mm fixed lens (3.6mm optional)
? ? ?SMART H.264+/H.265+,flexible coding, applicable to various bandwidth and storage environments.?
? ? ?Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking applicable to various monitoring scenes.?
? ? ?Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, and illegal access.
? ? ?12 VDC/PoE power supply.
? ? ?IP67 protection.
|
Camera |
|
|
Image Sensor |
1/2.8¡± CMOS |
|
Max. Resolution |
4MP |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto(1/25s ~ 1/1000) |
|
Min. Illumination |
0.01 Lux @F2.0 |
|
S/N Ratio |
> 56 dB |
|
Illumination Distance |
IR Light: 40 m, White Light: 40m |
|
Illuminator Control |
Auto; Manual |
|
Lens |
|
|
Lens Type |
Fixed-Focal |
|
Focal Length |
2.8mm/3.6mm |
|
Max. Aperture |
F2.0 |
|
Iris Type |
Auto |
|
Intelligence |
|
|
Human Detection |
Support |
|
Smart Motion Detection |
Support (based on Human Detection) |
|
Perimeter Protection |
NA |
|
Face Detection |
NA |
|
Object Detection |
NA |
|
People Counting |
NA |
|
Heat Map |
NA |
|
AI Search |
NA |
|
Video |
|
|
Compression |
H.264H; H.264M; H.264B; H.265 |
|
? Video Frame Rate |
Main Stream: 4MP (1 fps¨C25/30 fps) |
|
Sub Stream: D1 (1 fps¨C25/30 fps) |
|
|
Stream Capability |
2 Streams |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 1792Kbps~4Mbps |
|
? |
H.265: 1792Kbps~4Mbps |
|
Day/Night |
Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Yes |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 Areas, rectangular) |
|
Image Rotation |
0¡ã/180¡ã |
|
Mirror |
Yes |
|
Privacy Masking |
4 Areas |
|
Audio |
|
|
Built-in Mic |
NA (optional) |
|
Alarm |
|
|
Alarm Event |
Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
|
Network |
|
|
Network |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
TCP/IP;UDP;HTTP;DHCP;DDNS;FTP;UPNP |
|
Interoperability |
ONVIF; CGI |
|
Storage |
SD Card (Optional) |
|
Browser |
IE: IE8 and later |
|
Management Software |
PC Software(SVMS), APP(Zanuo) |
|
Mobile Client |
IOS; Android |
|
Power |
|
|
Power Supply |
12V DC (¡À30%)/PoE (802.3af) |
|
Power Consumption |
Max. 3W |
|
Environment |
|
|
Operating Conditions |
¨C30¡ãC to +60¡ãC (¨C22¡ãF to +140¡ãF)/Less than 95% RH |
|
Storage Conditions |
¨C40¡ãC to +60¡ãC (¨C40¡ãF to +140¡ãF) |
|
Protection Grade |
IP67 |
|
Structure |
|
|
Casing |
Metal( pedestal: plastic ) |
|
Dimensions |
70mm¡Á70mmx170mm |
|
Net Weight |
420g |
