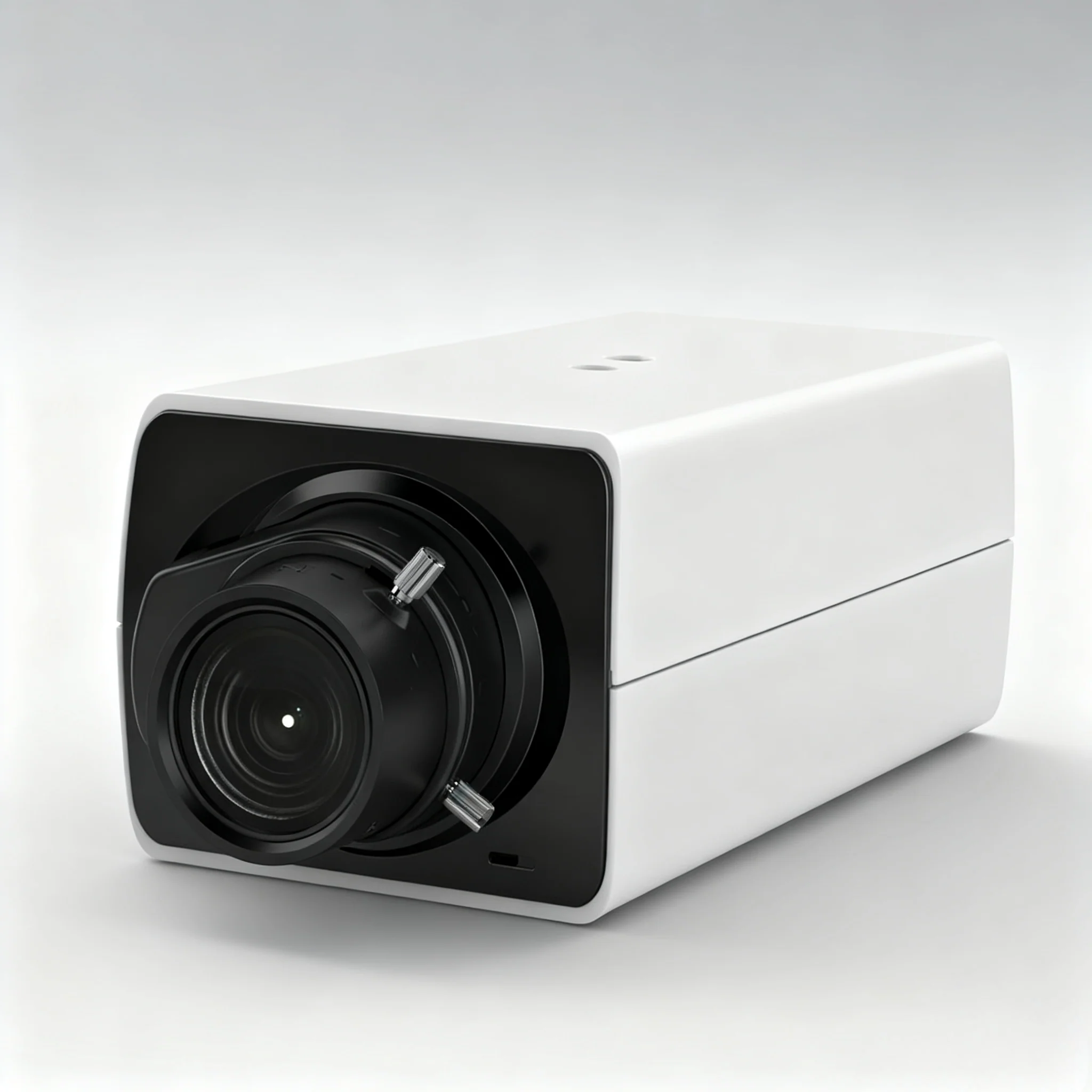

HIK DS-2CD2821G0 2 MP Powered by DarkFighter Box Network Camera
2 MP Powered by DarkFighter Box Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- One built-in microphone
- 24 VAC ± 20%, 0.52 A, max. 7.5 W
- Audio and alarm interface available
Available models:
Product Data
- Camera
- Image Sensor1/2.7" Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
- Shutter Time1/3 s to 1/100, 000 s
- Day & NightIR cut filter
- Lens
- Lens MountC/CS mount
- Iris TypeDC drive
- Video
-
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
- Built-in MicrophoneYes
-
Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium.
- Alarm 1 input,1 output (max. 12 VDC, 30 mA)
- RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Power Output12 VDC, 100 mA
- Event
- Basic Event Motion detection, video tampering alarm, exception
- Smart EventLine crossing detection, intrusion detection
- LinkageUpload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture
- General
-
Power
12 VDC ± 25%, 0.63 A, max. 7.5 W, two-core terminal block, reverse polarity protection;
24 VAC ± 20%, 0.52 A, max. 7.5 W, two-core terminal block
PoE: 802.3af, 36 V to 57 V, 0.24 A to 0.15 A, max. 8.5 W
- Dimension68 mm × 56.3 mm × 132.3 mm (2.7" × 2.2" × 5.2")
- Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
- WeightApprox. 435 g (1.0 lb.)
- With Package WeightApprox. 623 g (1.4 lb.)
- Storage Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
-
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, one-key reset, privacy mask, watermark, IP address filter
- Approval
-
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
-
Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
-
Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
